| System Structure | Embedded RTOS, dual-core 32bit DSP (XM530), Puere Hard Compression, Watch Dog |
|---|
| Image Sensor | 2.0 MP - 1/4" SC2145 CMOS |
|---|
| Video Compression | H.265X, Support Dual Stream, AVI; 0.1M~8Mpbs var; 1~30f/s var |
|---|
| Audio Compression | G711 Standard Compression, Support Two-Way Bidirectional Talk, Audio + Video synchronization |
|---|
| Image Output | Main Stream: 1920x1080@12fps, Sub Stream: 640x360@12fps |
|---|
| Lens Type | Fixed lens 2.1mm |
|---|
| Infrared led | 6 Nami Led |
|---|
| Distance Infrared | 40m |
|---|
| Network Interface | 1xRJ45 10/100M Adaptative Port, Support RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP, WiFi b/g/n |
|---|
| Onvif | Yes |
|---|
| Mobile Monitoring | XMEye |
|---|
| Intelligent Function | Support Human Detection, Cross Line, Perimeter, Motion Detection) |
|---|
| Noise Reduction | Support 2D/3D |
|---|
| WiFi Interface | Yes Wireless Connection |
|---|
| SD Card | Yes Support max 128Gb (not included) |
|---|
| Weaterproof Housing | IP66 |
|---|
| Operation Temperature | -20°C ~ +50°C / RH95% Max |
|---|
| Power | DC12V (±10%) / 500Ma |
|---|
| Reset Interface | Yes |
|---|

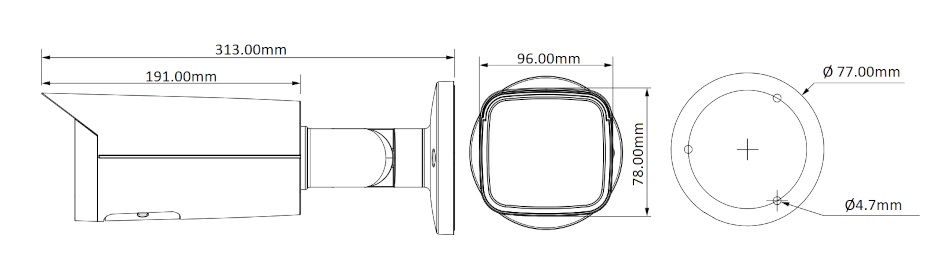

| Dimension | 313mm x 96mm x 78mm |
|---|
| Weight | 800gr |
|---|
