| Camera |
|---|
| Appearance | Bullet |
|---|
| Image Sensor | 5MP CMOS image sensor |
|---|
| Signal System | PAL/NTSC |
|---|
| Video Frame Rate | TVI: 5 M @ 20 fps, 4 M @ 30 fps, 4 M @ 25 fps, 1080p @ 30 fps, 1080p @ 25 fps |
|---|
| Effective Pixels | 2560 (H) × 1944 (V) |
|---|
| Min. illumination | 0.01 Lux @ (F2.0, AGC ON), 0 Lux with IR |
|---|
| Shutter Time | 1/25 (1/30) s to 1/50,000 s |
|---|
| Lens | 2.8 mm |
|---|
| Angle of view | 110° |
|---|
| Lens Mount | M12 |
|---|
| Day & Night | Auto/Color/BW (Black and White) |
|---|
| Angle Adjustment | Pan: 0° to 360°, Tilt: 0° to 180°, Rotation: 0° to 360° |
|---|
| Synchronization | Internal synchronization |
|---|
| Material | Metal |
|---|
| Menu |
|---|
| White Balance | ATW/MANUAL |
|---|
| D/N Mode | Auto/Color/BW (Black and White) |
|---|
| Image Enhancement | BLC, HLC |
|---|
| WDR | Digital WDR |
|---|
| Language | English |
|---|
| Interface |
|---|
| Video Output | 1 HD analog output |
|---|
| Switch Button | TVI/AHD/CVI/CVBS |
|---|
| General |
|---|
| Operating Conditions | -40 °C to 60 °C (-40 °F to 140 °F), Humidity: 90% or less (non-condensation) |
|---|
| Power Supply | 12 VDC ±25% |
|---|
| Power Consumption | Max. 4.3 W |
|---|
| Protection Level | IP66 |
|---|
| IR Range | Up to 20m |
|---|

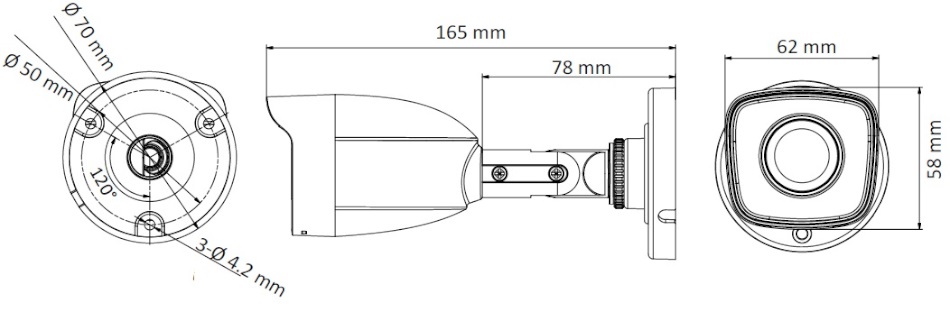

| Dimensions | 165 mm × 62 mm × 58 mm |
|---|
| Weight | 230 g |
|---|
